Getting Started With the Streaming Test Suite

The Streaming Test Suite is starter code that takes you step by step through the process of getting up and running with Deepgram's live streaming API.

If you're looking to get started with Deepgram's audio streaming capabilities, our streaming test suite is the perfect place to begin. The test suite provides sample code that allows you to easily stream basic audio to Deepgram, ensuring that you have the necessary foundation to build for your unique use case.

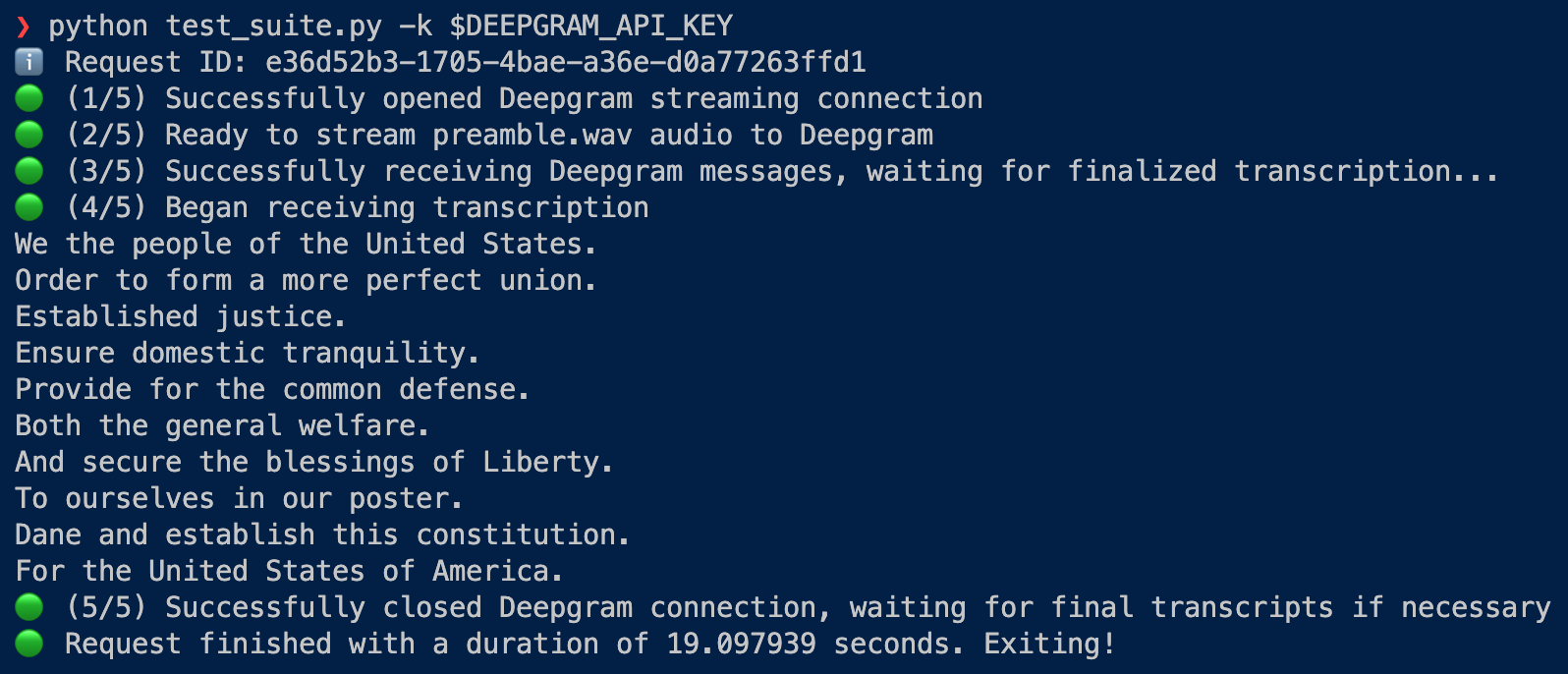

image of terminal showing the streaming test suite transcribing the Preamble

Once you've tested out the basics of streaming audio to Deepgram, you'll move on to using an included mock server for testing. This allows you to focus on getting your audio and client code right. Once you're confident that your audio stream is configured correctly and you're streaming the audio you expect, you can easily swap to sending that audio to Deepgram's service.

Before diving into writing code from scratch, we highly recommend running through the steps in our test suite at least once to ensure that you can stream sample audio to Deepgram successfully. This will help you avoid many potential issues and streamline the integration process for sending your own audio to our system.

The test suite includes many ways to help diagnose problems. If you encounter issues, the test suite will provide more details on the error as well as steps to fix it.

With our streaming test suite, you can feel confident that you are laying a solid foundation for your audio streaming needs. Let's get started!

Set Up

Prerequisites

You must have:

  • Python >= 3.6+
  • portaudio, if you plan to stream audio from your microphone
  • A valid Deepgram API key (you can create one in our Console)

Installation

  1. Clone the streaming test suite repository
  2. Install portaudio
  3. pip install -r requirements.txt

📘

Installing PortAudio

If you use brew or conda, we recommend installing PortAudio with brew install portaudio or conda install portaudio.

Otherwise, you can download a zip file from portaudio.com, unzip it, and then consult PortAudio's docs as a reference for how to build the package on your operating system. For Linux and MacOS, the build command within the top-level portaudio/ directory is ./configure && make.

PortAudio is known to have compatibility issues on Windows. However, this dependency is only required if you plan to stream audio from your microphone. If you run into issues installing PortAudio, you can still complete the other tasks outlined in this guide.

1. Streaming a Local Source

The first step in getting started with Deepgram's audio streaming capabilities is to learn how to stream a local audio source to Deepgram. This simple task allows you to learn the basic concepts of how Deepgram's API works without worrying about complexities that arise with other audio sources. Additionally, it ensures that you can receive results from Deepgram in your development environment.

The streaming test suite provides sample code that facilitates this process. Before building your own integration, we recommend running this code at least once to make sure that you can stream audio to Deepgram successfully.

⚠️

If you're already confident you can stream audio to Deepgram and receive transcriptions, you can skip to 3. Streaming Your Audio.

Stream a File

While streaming a file isn't our recommended way to use Deepgram's real-time transcription service (we suggest our pre-recorded API for that), it's a quick and easy way to make sure your API key and network are functioning correctly.

Just run the following command:

python test_suite.py -k YOUR_DEEPGRAM_API_KEY

You may need to use the command python3 instead.

⚠️

Make sure to replace YOUR_DEEPGRAM_API_KEY with an API key generated from our Console.

This will stream the included file, preamble.wav, to Deepgram and print out transcripts to your terminal.

You can also stream your own WAV file by running:

python test_suite.py -k YOUR_DEEPGRAM_API_KEY -i /path/to/audio.wav

To check out how this functionality is implemented, look at the conditional elif method == 'wav' in our sender function.

📘

Running an on-prem Deepgram deployment? You can provide your custom URL to the test suite with the --host argument.

Stream Your Microphone

The streaming test suite also has the ability to send audio from your microphone to Deepgram for transcription.

First, make sure pyaudio and its portaudio dependency are installed, and you have a microphone connected to your computer. Then, run:

python test_suite.py -k YOUR_DEEPGRAM_API_KEY -i mic

Additional Options

The following arguments can be appended to any test suite command.

Parameters

--model/-m: Specify a Deepgram model. Example: --model phonecall. Defaults to general.

--tier/-t: Specify a Deepgram model tier. Example: --tier nova. Defaults to none specified.

Timestamps

--timestamps/-ts: Opt-in to printing start and end timestamps in seconds for each streaming response. Example: --timestamps

Sample output line with timestamps:

In order to form a more perfect union, [2.5 - 4.26]

Subtitle Generation

In addition to printing transcripts to the terminal, the test suite can also wrap Deepgram's responses in two common subtitle formats, SRT or VTT.

To generate SRT or VTT files, add the -f/--format parameter when running the test suite:

python test_suite.py -k YOUR_DEEPGRAM_API_KEY [-i mic|/path/to/audio.wav] [-f text|vtt|srt]

This parameter defaults to text, which outputs responses to your terminal.


If you were able to successfully stream local audio and receive a transcript, you're ready to move on to the next step!

2. Streaming a Remote Source

The next step in getting started with Deepgram's audio streaming capabilities is to learn how to stream a remote file to Deepgram. This task introduces slightly more complexity and requires managing multiple asynchronous remote sources—one for audio input to Deepgram, one for Deepgram's transcription output.

Stream a URL

Make sure you have the URL for direct audio stream to test with. A good way of testing this is to open the URL in a browser—you should see just the built-in browser audio player without an accompanying web page.

Here are two URLs for you to try:

If you use the French channel, be sure to add language=fr to your Deepgram URL.

Then, run the test suite to see the results:

python test_suite.py -k YOUR_DEEPGRAM_API_KEY -i http://stream.live.vc.bbcmedia.co.uk/bbc_world_service

To check out how this functionality is implemented, look at the conditional elif method == url in our sender function. We use the aiohttp library to make an asynchronous request and open a session, then send content to Deepgram.

3. Streaming Other Audio

Now that you've validated you can stream WAV files and URLs to Deepgram, it's time to start the process of integrating other audio sources, so you can build something with Deepgram that's tailored to your business needs. To do this, we'll start by taking a step back…and removing Deepgram from the picture!

Let's set the test_suite.py file aside for the moment. In addition to that file, the test suite also comes with a mock server and client: server.py and client.py. These are intended to create the simplest possible environment to test your custom audio.

The mock server exposes a similar interface to Deepgram's streaming service. It accepts websocket connections that specify an encoding, sample rate, and number of channels; and it expects a stream of raw audio. However, it doesn't transcribe that audio. All it does is send back messages confirming how much audio data has been received, and once the client closes the stream, it saves all sent audio to a file.

Using the mock server for testing allows you to focus on getting your audio and client code right. Once you're confident that your audio stream is configured correctly and you're streaming the audio you expect, you can easily swap to sending that audio to Deepgram's service.

Run the Mock Server

Start by running the mock server:

python server.py

Then, open another terminal window and prepare to run the mock client.

The mock client accepts these parameters:

python client.py [-i INPUT] [-e ENCODING] [-s SAMPLE_RATE] [-c CHANNELS]

The test suite comes with a raw audio file, preamble.raw , that you can use to test streaming to the mock server. You can stream preamble.raw with the mock client like so:

python client.py -i preamble.raw -e linear16 -s 8000 -c 1

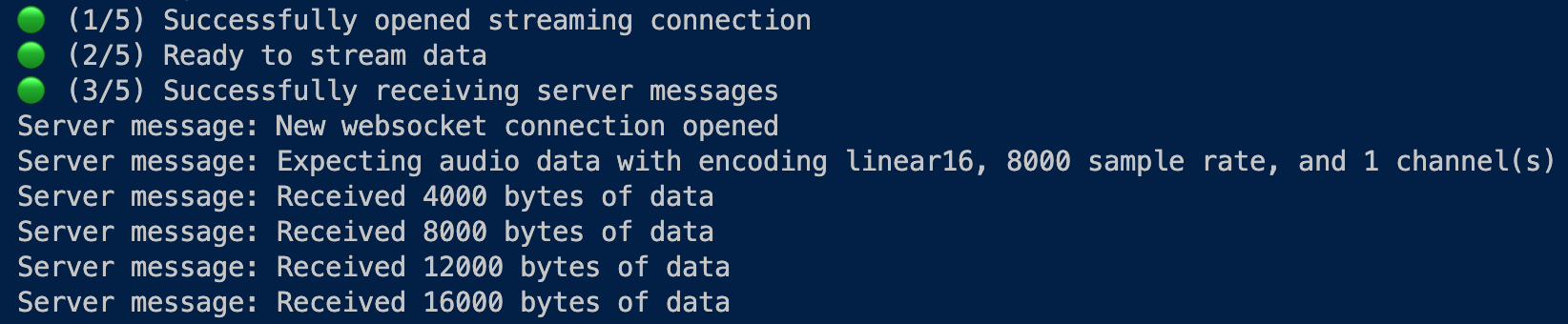

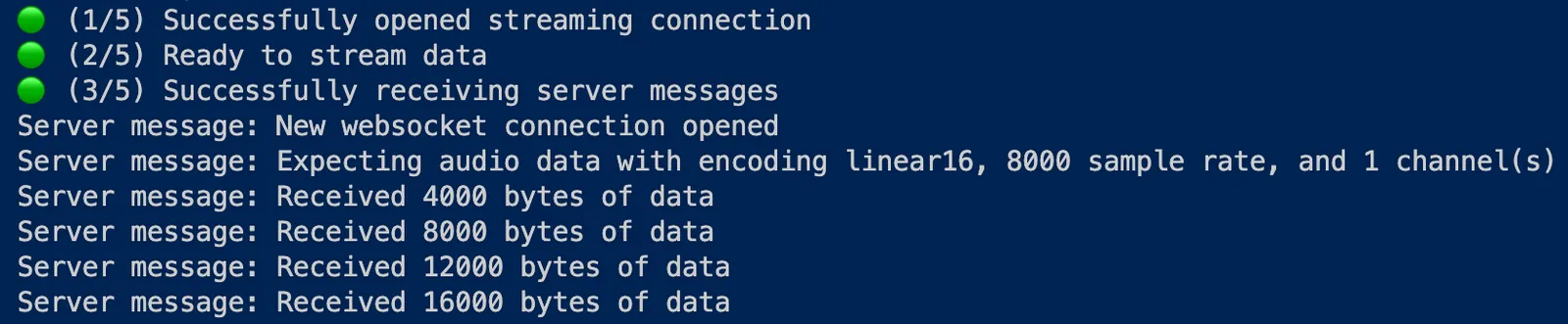

When you run the mock client, you should see output confirming that the mock server has begun to receive your audio.

For a list of valid encodings, see Deepgram's documentation.

Validate Your Audio

At the end of an audio stream, the mock server saves all audio data that was sent in a RAW file. It will return the filename to you at the end of the stream.

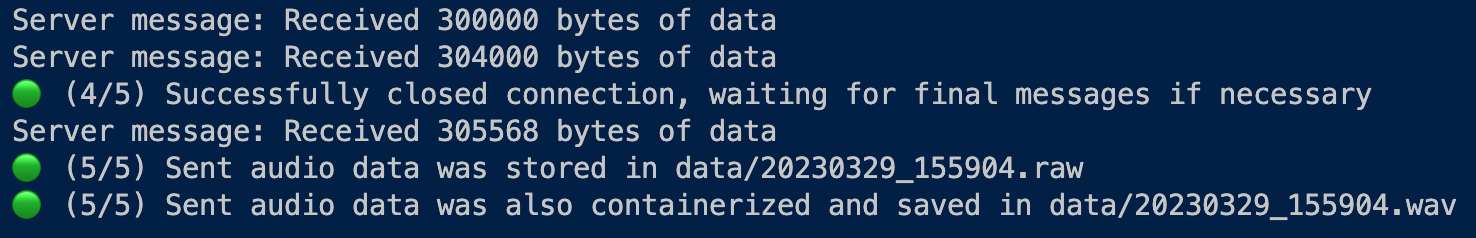

image of terminal showing message that websocket is receiving data

You need to ensure the audio the server received is the audio you intended to send. To validate this, open this file in a program like Audacity (specifying necessary parameters like the encoding and sample rate) and try to play it back. You should be able to listen to your audio and verify it's correct.

Stream to Deepgram

Once you verify your audio is correct, you can try streaming that audio to Deepgram. To do so, simply swap the websocket URL in client.py to point to Deepgram—the correct URL is left in a comment for you.

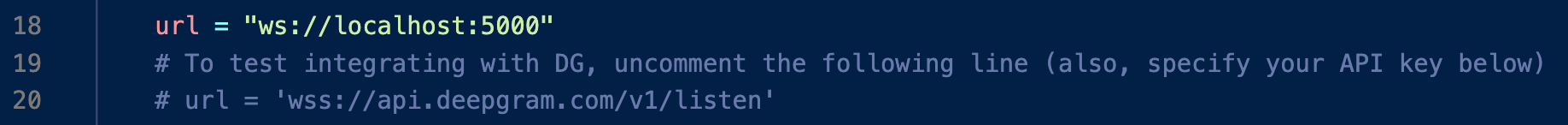

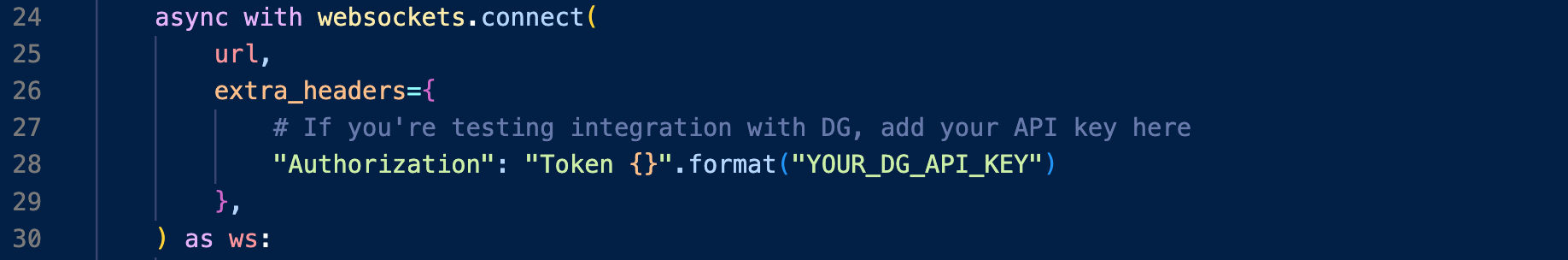

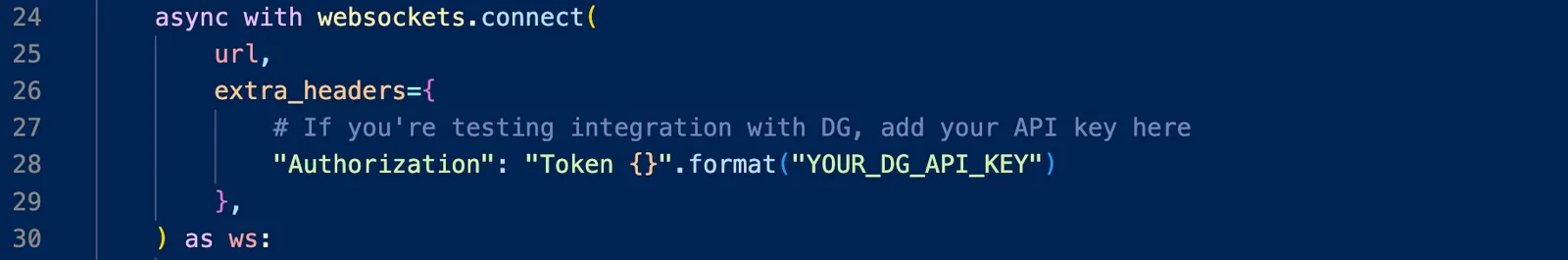

image of terminal showing lines to edit to connect to Deepgram

Don't forget add your DG API key to the websocket headers where it says YOUR_DG_API_KEY.

If you were able to stream to the mock server, and have validated your audio sounds correct, you should be able to seamlessly start receiving transcriptions from Deepgram.

Wrap-Up

By following the test suite steps, you've built your knowledge of working with websockets, audio, and Deepgram's system. We hope this guide has enabled you to build your own custom audio integrations with confidence.

If you have any questions or feedback on this guide, we would love to hear from you. Please reach out to [email protected].
