Configure Amazon SageMaker deployments

Deepgram on Amazon SageMaker supports runtime configuration through environment variables. When your SageMaker Endpoint starts, the container reads these variables and applies them to the appropriate configuration files (api.toml and engine.toml) before launching Deepgram services.

Use environment variables to tune settings for a specific SageMaker deployment, such as specifying the maximum number of streams for Flux or adjusting the step parameter for interim results (Nova-3).

Environment variable format

Each environment variable targets either the API server (api.toml) or the speech engine (engine.toml) based on its prefix.

The suffix after the prefix (for example, 01, 02) is arbitrary and distinguishes multiple variables targeting the same file. Variables are applied in alphabetical order by name.

Value syntax

DEEPGRAM_ENGINE_<suffix>="<dotted.key.path>=<value>"
DEEPGRAM_API_<suffix>="<dotted.key.path>=<value>"

• Dotted key path: Maps to TOML section hierarchy. For example, chunking.streaming.step sets the step key inside [chunking.streaming].
• Value types: Integers, floats, booleans (true/false), and quoted strings.
• Multiple settings: Use separate environment variables with different suffixes.

Configuration examples

Specify maximum engine requests

DEEPGRAM_ENGINE_01=max_active_requests=120

Disable entity detection (speech-to-text)

DEEPGRAM_API_01=features.entity_detection=false

Specify maximum Flux streams

This is separate from max_active_requests and is specific to the Flux streaming transcription model.

DEEPGRAM_ENGINE_01=flux.max_streams=25

Tune streaming chunk size

DEEPGRAM_ENGINE_01=chunking.streaming.step=0.5

Require GPU on startup

DEEPGRAM_ENGINE_01=health.gpu_required=true

Apply multiple settings

Use incrementing suffixes to apply multiple settings to the same file:

DEEPGRAM_ENGINE_01=chunking.streaming.step=0.5
DEEPGRAM_ENGINE_02=health.gpu_required=true
DEEPGRAM_API_01=features.listen_v2=true
DEEPGRAM_API_02=features.topic_detection=false

Set environment variables in SageMaker

Environment variables are set at the Model level in SageMaker and passed to the container at runtime.

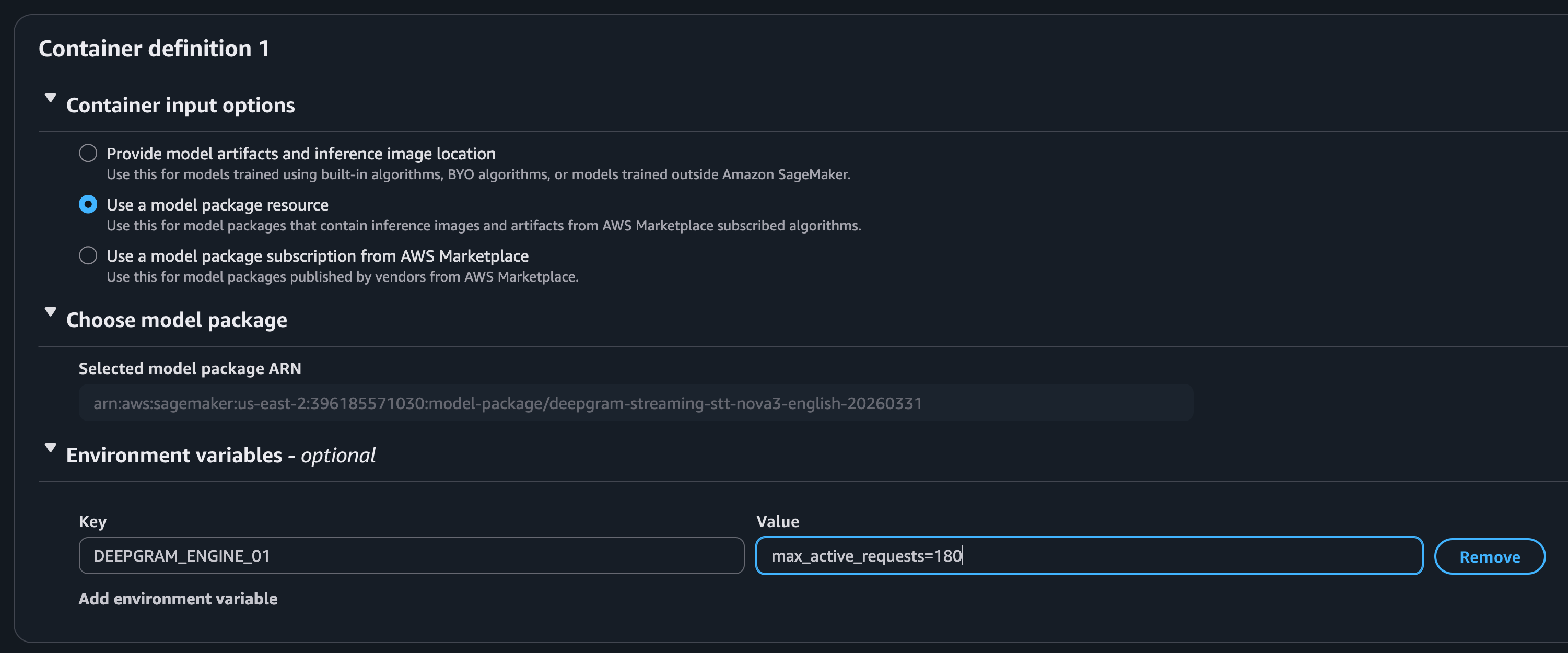

AWS Management Console

AWS CLI

Create the SageMaker Model resource from a Model Package Amazon Resource Name (ARN). You can obtain the Model Package ARN from the SageMaker AI console, under Marketplace Model Packages, on the AWS Marketplace Subscriptions tab.

$
aws sagemaker create-model \
>
  --model-name my-deepgram-model \
>
  --execution-role-arn arn:aws:iam::123456789012:role/SageMakerRole \
>
  --containers "[{
>
    \"ModelPackageName\": \"arn:aws:sagemaker:us-east-1:123456789012:model-package/my-model-package/1\",
>
    \"Environment\": {
>
      \"DEEPGRAM_ENGINE_01\": \"flux.max_streams=25\",
>
      \"DEEPGRAM_API_01\": \"features.listen_v2=true\"
>
    }
>
  }]"

If you create the model directly from an ECR image, use --primary-container with Image=... instead.

AWS SDK for Python (Boto3)

1
import boto3
2
3
sagemaker = boto3.client("sagemaker")
4
5
sagemaker.create_model(
6
    ModelName="my-deepgram-model",
7
    ExecutionRoleArn="arn:aws:iam::123456789012:role/SageMakerRole",
8
    Containers=[
9
        {
10
            "ModelPackageName": "arn:aws:sagemaker:us-east-1:123456789012:model-package/my-model-package/1",
11
            "Environment": {
12
                "DEEPGRAM_ENGINE_01": "flux.max_streams=25",
13
                "DEEPGRAM_API_01": "features.listen_v2=true",
14
            },
15
        }
16
    ],
17
)

Verify configuration

After your Endpoint reaches InService status, check Amazon CloudWatch Logs for the Endpoint to confirm variables were applied. Look for log lines similar to:

INFO Starting Deepgram SageMaker configuration...
INFO Applying to engine.toml: DEEPGRAM_ENGINE_01=flux.max_streams=25
INFO Successfully updated engine.toml
INFO Applying to api.toml: DEEPGRAM_API_01=features.listen_v2=true
INFO Successfully updated api.toml
INFO Configuration complete.

Troubleshooting

Maximum environment variables supported

Deepgram supports a maximum of 8 environment variables each for the API server and engine. Suffixes range from 01 to 08.

Setting does not take effect

Check CloudWatch Logs for warning messages indicating a variable was skipped due to a parse error.

Parse error in CloudWatch Logs

• Quote string values within the value expression: driver_pool.standard.url="https://engine:8080/v2"
• Boolean values do not require quoting: features.listen_v2=true

Environment variable support not enabled

AWS requires whitelisting support for environment variables on SageMaker product listings. If you receive the error:

An error occurred (ValidationException) when calling the CreateModel operation: Environment variable map cannot be specified when using a ModelPackage subscribed from AWS Marketplace.

Contact Deepgram Support for help enabling it for that product.

Support

For a complete reference of available TOML configuration keys, refer to the api.toml and engine.toml files in the Deepgram self-hosted GitHub repository, or contact Deepgram Support.
